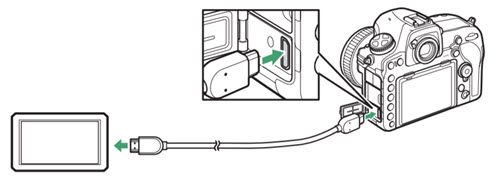

The cameras listed below can output uncompressed movie data from the HDMI port to an external HDMI recorder/monitor. These devices have a screen, which acts as a control panel for movie recording. External HDMI recorders/monitors benefit from large hard drive capacity and can save high-quality movies in a range of codecs. Other functions to enhance movie recording such as timecode, zebra patterns, etc. are possible depending on the camera and recorder/monitor used.
The following cameras can output uncompressed movie data to an external HDMI recorder/monitor:
• D6, D5, D4S, D4, D850, D810, D800E, D800, D780, D750, D610, D600
• D500, D7500, D7200, D7100, D5600, D5500, D5300, D5200, D3500, D3400, D3300, D3200
• Z9, Z8, Z7II, Z7, Z6III, Z6II, Z6, Z5, Zf, Z50II, Z50, Z30, Zfc
For details of compatible cameras with Atomos HDMI recorders, click here.
Recommended camera setup
Setup options vary according to camera and recorder:
-
Set the movie Frame size/ frame rate to your preference.
-
HDMI output resolution, set to Auto.
-
HDMI output display size set to 100%.
-
HDMI Live view on-screen display > Off.
-
Standby timers should be set to no limit or the maximum time allowed.
